Quick Start

Let's dive in and change something in the game:

  1. In Mod Editor, press Alt+Shift+O to open the file browser.
  2. Search for pc marine titus authority and double-click the pc_marine_pve_story_titus_authority.cls file.

  3. Delete head_01 and all its LODs (select in the hierarchy view and then Delete Hierarchy). Go to File > Clean Up > Purge, otherwise the new head_01 object will have the .001 postfix and the deleted head will be exported as well.

    Info

    See the authority part in the filename? Authority refers to the current player – you, while Client refers to any other player. For another player, they are the Authority, and you are a Client.

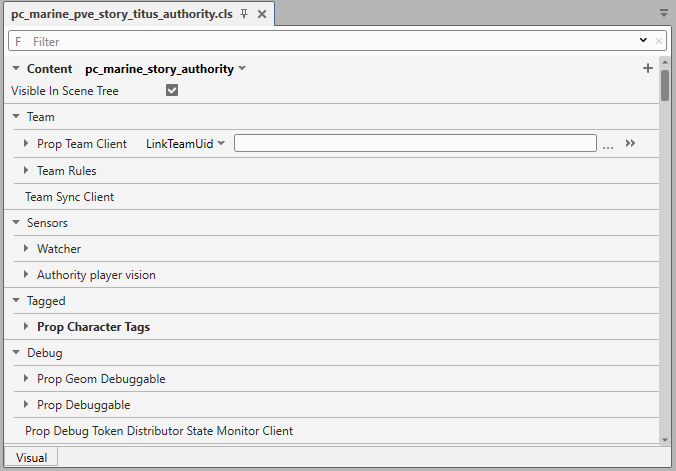

    This will open the CLS file for the Titus actor. An actor is a game entity that has logic assigned to it: a player, a barrel, and so on. Every CLS contains a set of properties that define its actor's logic. For example, the Geometry property determines an actor's appearance. Changing it will have an immediate effect on your game, so this is what we'll do in Step 3.

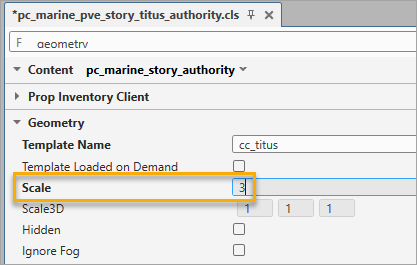

  4. Find the Geometry property in the list (use the filter at the top of the list to search quickly). Change its Scale setting from 1 to 3.

    Info

    Notice how the changed setting is now highlighted in bold? This indicates that its value differs from the default (or rather, parent's value — but this is the term from the advanced tutorial). To revert to the default value, click the arrow button on the right.

  5. Press Ctrl+S to save the changes.

  6. Right-click the CLS file tab and select Show in Explorer. This will open the folder where the current file is located. If this doesn't work, you can alternatively select Copy Info > Copy Full Path and then paste the path into Explorer manually. Be sure to delete the actual filename from the copied path – we want to open the file's parent folder, not the file itself.
  7. Copy the pc_marine_pve_story_titus_authority.cls and pc_marine_pve_story_titus_authority.cls.resource files to the clipboard.

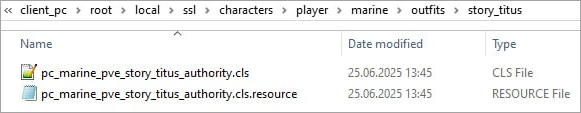

  8. Paste the copied files into the root\local folder, retaining the relative folder hierarchy — everything that goes after root\mods_source\default_other\. In our example, place them in <path_to_game>\client_pc\root\local\ssl\characters\player\marine\outfits\story_titus. You'll need to manually recreate all required folders within local.

  9. That's it! Now you can launch the game and enjoy the new look and feel of Titus. And we're not spoiling this experience with a screenshot. Don't worry when you see a warning about corrupted files and the label MODS DETECTED. This just means the magic is working.

If you don't see the expected result in-game, try the following:

  • Check if the game shows the MODS DETECTED label. If not, it likely means the files weren't moved to the local folder correctly — please revisit Step 7 above.
  • If the game crashes, verify that you unpacked the game files correctly into the mods_source folder, as described in the Install Mod Editor section. If this step is done incorrectly, IntegrationStudio may generate an invalid .resource file. You can confirm this by deleting the pc_marine_pve_story_titus_authority.cls.resource file and launching the game — it should start without crashing. Be sure to redo the extraction from scratch to prevent further crashes. While .resource file aren't essential for this tutorial, they will be critical for your future mods.
  • If the game starts correctly and shows the MODS DETECTED label, but Titus is still the same size, double-check that you modified the correct CLS file. There are several files with similar names – for example, Deathwatch Titus is a different actor, so changes to that file won't affect the one we're editing here.
